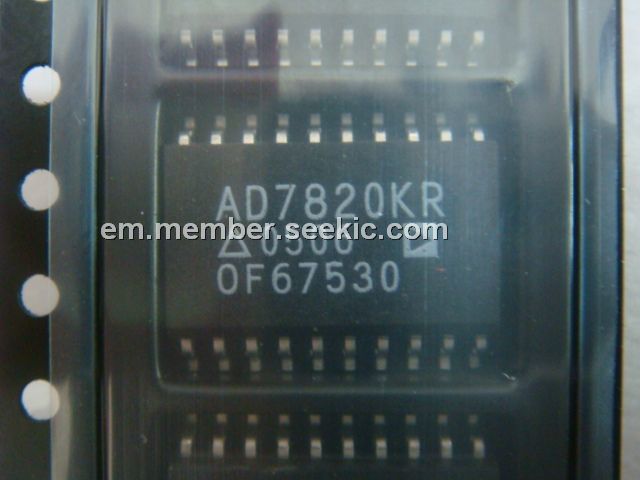

Product Summary
The AD7820KR is a high speed, microprocessor-compatible 8-bit analog-to-digital converter. The AD7820KR uses a half-flash conversion technique to achieve a conversion time of 1.36μs. The converter AD7820KR has a 0V to +5V analog input voltage range with a single +5V supply. The AD7820KR is fabricated in an advanced, all ion-implanted, high speed, linerar compatible CMOS process and features a low maximum power dissipation of 75mW. The AD7820KR is available in 20-pin DIPs, SOICs and in 20-terminal surface mount packages.
Parametrics
AD7820KR absolute maximum ratings: (1)VDD to GND: 0V, +7V; (2)digital input voltage to GND: -0.3V, VDD+0.3V; (3)digital output voltage to GND: -0.3V, VDD+0.3V; (4)VREF(+) to GND: VREF(-), VDD+0.3V; (5)VREF(-) to GND: 0V, VREF(+); (6)VIN to GND: -0.3V, VDD+0.3V; (7)operating temperature range: -40 to 85℃; (8)storage temperature range: -65 to 150℃; (9)lead temperature: 300℃; (10)power dissipation: 450mW; (11)derates above: 6mW/℃.
Features
AD7820KR features: (1)fast conversion time: 1.36μs max; (2)built in track and hold function; (3)no missed codes; (4)no user trims required; (5)single +5V supply; (6)ratiometric operation; (7)no external clock; (8)extended temperature range operation; (9)skinny 20-pin DIP, SOIC and 20-terminal surface mount packages.

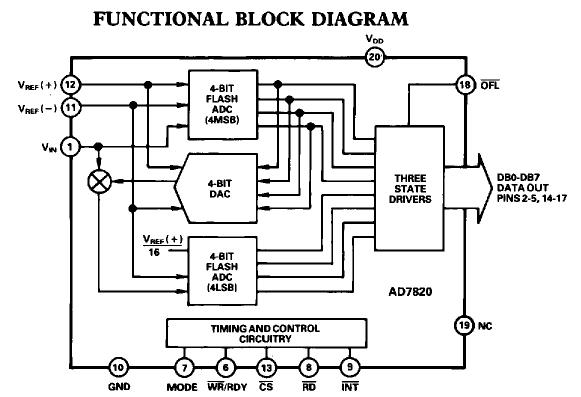

Diagrams
