Product Summary
The FT4232HL is FTDI’s 5th generation of USB devices. The FT4232HL is a USB 2.0 High Speed (480Mb/s) to UART/MPSSE ICs. The device features 4 UARTs. Two of these have an option to independently configure an MPSSE engine.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: -65℃ to 150℃; (2)Floor Life (Out of Bag) At Factory Ambient (30°C / 60% Relative Humidity): 168 Hours; (3)Ambient Operating Temperature (Power Applied): -40℃ to 85℃; (4)MTTF FT4232HL: TBD hours; (5)VCORE Supply Voltage: -0.3 to +2.0 V; (6)VCCIO IO Voltage: -0.3 to +4.0 V; (7)DC Input Voltage – USBDP and USBDM: -0.5 to +3.63 V.
Features
Features: (1)Single chip USB to quad serial ports with a variety of configurations; (2)Entire USB protocol handled on the chip. No USB specific firmware programming required; (3)USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.

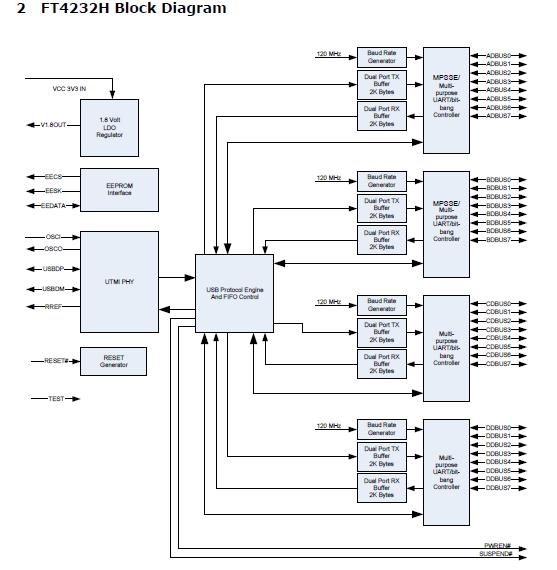

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FT4232HL-REEL |
FTDI |
USB Interface IC USB HS to Quad UART/ SPI/JTAG/I2C LQFP-64 |
Data Sheet |
|
|
||||||||||||
|
FT4232HL-TRAY |
FTDI |
USB Interface IC USB HS to Quad UART/ SPI/JTAG/I2C LQFP-64 |
Data Sheet |
|
|
||||||||||||
