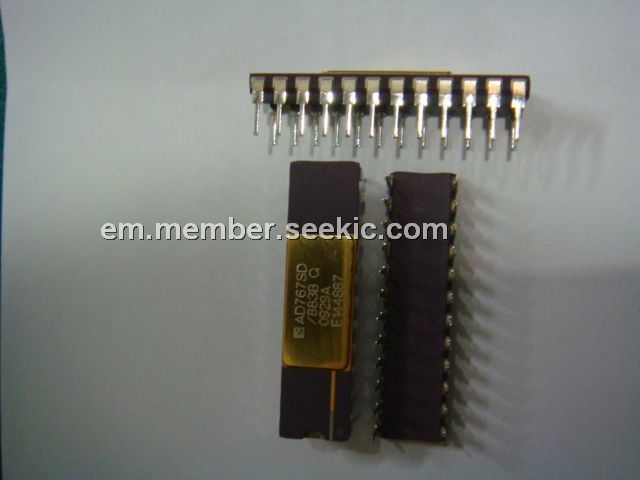

Product Summary

The AD767SD/883 is a complete voltage output 12-bit digital-toanalog converter including a high stability buried Zener reference and input latch on a single chip. The converter uses 12 precision high-speed bipolar current steering switches and a laser-trimmed thin-film resistor network to provide high accuracy.

Parametrics

Absolute maximum ratings: (1)VCC to Power Ground: 0 V to +18 V; (2)VEE to Power Ground: 0 V to –18 V; (3)Digital Inputs (Pins 11, 13–24) to Power Ground: –1.0 V to +7.0 V; (4)Ref In to Reference Ground: ±12 V; (5)Bipolar Offset to Reference Ground: ±12 V; (6)10 V Span R to Reference Ground: ±12 V; (7)20 V Span R to Reference Ground: ±24 V.

Features

Features: (1)Complete 12-Bit D/A Function: On-Chip Output Amplifier, High Stability Buried Zener Reference; (2)Fast 40 ns Write Pulse; (3)0.3" Skinny DIP and PLCC Packages; (4)Single Chip Construction; (5)Monotonicity Guaranteed Over Temperature; (6)Settling Time: 3 ms max to 1/2 LSB; (7)Guaranteed for Operation with 612 V or 615 V Supplies; (8)TTL/5 V CMOS Compatible Logic Inputs; (9)MIL-STD-883 Compliant Versions Available.

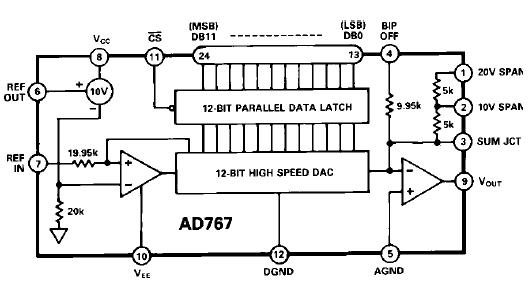

Diagrams

AD760
AD760
