Product Summary

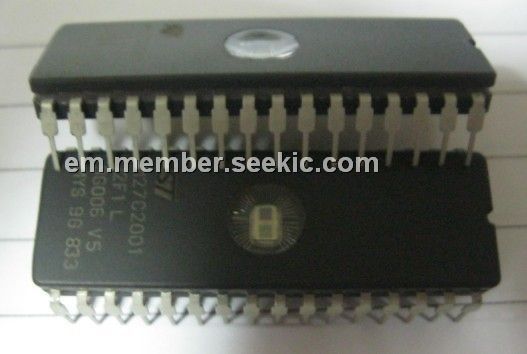

The m27c2001-12f1 is a high speed 2 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). The m27c2001-12f1 is ideally suited for microprocessor systems requiring large programs and is organised as 262,144 by 8 bits. The FDIP32W (window ceramic frit-seal package) and LCCC32W (leadless chip carrier package) have a transparent lids which allow the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the m27c2001-12f1 by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the m27c2001-12f1 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages.
Parametrics
m27c2001-12f1 absolute maximum ratings: (1)TA, Ambient Operating Temperature:–40 to 125℃; (2)TBIAS, Temperature Under Bias: –50 to 125℃; (3)TSTG, Storage Temperature: –65 to 150℃; (4)VIO, Input or Output Voltage (except A9): –2 to 7 V; (5)VCC Supply Voltage –2 to 7 V; (6)VA9, A9 Voltage: –2 to 13.5 V; (7)VPP, Program Supply Voltage: –2 to 14 V.
Features
m27c2001-12f1 features: (1)5V ± 10% supply voltage in read operation; (2)access time: 55ns; (3)low power consumption: Active Current 30mA at 5MHz; Standby Current 100μA; (4)programming voltage: 12.75V ± 0.25V; (5)Programming time: 100μs/word; (6)electronic signature: Manufacturer Code: 20h; Device Code: 61h.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C2001-12F1 |
STMicroelectronics |
EPROM 2M (256Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
