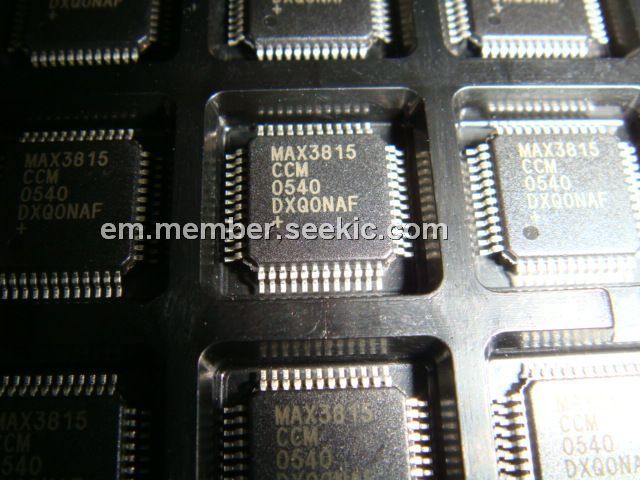

Product Summary

The MAX3815CCM cable equalizer automatically provides compensation for DVI, HDMI, DFP, PanelLink, and ADC cables. It extends the usable cable distance up to 36 meters. The MAX3815CCM is designed to equalize signals encoded in the transition-minimized differential signaling (TMDS) format. The MAX3815CCM features four CML-differential inputs and outputs (three data and one clock). It provides a lossof-signal (LOS) output that indicates loss-of-clock signal.

Parametrics

Absolute maximum ratings: (1)Supply Voltage, VCC: -0.5V to +4.0V; (2)Voltage at All I/O Pins: -0.5V to (VCC + 0.7V); (3)Voltage between any CML I/O Complementary Pair: ±3.3V; (4)Continuous Power Dissipation (TA = +70℃): 48-Pin TQFP-EP (derate 36.2mW/℃ above +70℃): 2896mW; (5)Operating Junction Temperature Range: -55℃ to +150℃; (6)Storage Temperature Range: -55℃ to +150℃; (7)Die Attach Temperature: +400℃.

Features

Features: (1)Extends TMDS Cable Reach to Projectors or Monitors Using DVI, DFP, PanelLink, ADC, or; (2)HDMI Interfaces; (3)Extends TMDS Interface Length as Follows: 0 to 50 Meters Over DVI-Cable, 24 AWG STP (Shielded-Twisted Pair); 0 to 36 Meters Over DVI-Cable, 28 AWG STP; 0 to 30 Meters Over DVI-Cable, 30 AWG STP; (4)Compatible with DTV Resolutions 480i, 480p, 720p, 1080i, and 1080p; (5)Compatible with Computer Resolutions VGA, SVGA, XGA, SXGA, UXGA; (6)Fully Automatic Equalization Up to 40dB at 825MHz (1.65Gbps), No System Control Required; (7)3.3V Power Supply; (8)Power Dissipation of 0.6W (typ); (9)7mm x 7mm 48-Pin TQFP Lead-Free Package.

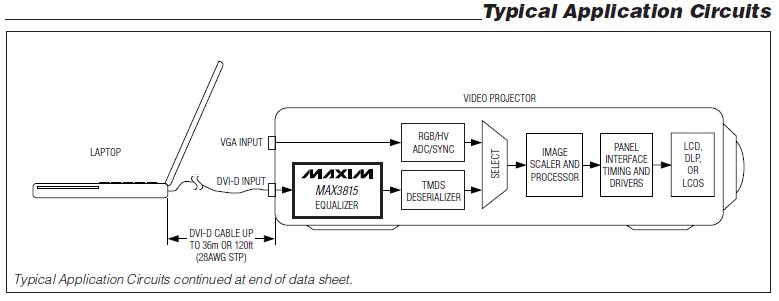

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX3815CCM+DG05
MAX3815CCM+DG05

Maxim Integrated Products

Equalizers TMDS Digi Video EQ for HDMI/DVI Cables

Data Sheet

0-184: $3.65
184-250: $3.62
250-500: $3.47
500-1000: $3.23
MAX3815CCM+TD
MAX3815CCM+TD

Maxim Integrated Products

Equalizers TMDS Digi Video EQ for HDMI/DVI Cables

Data Sheet

0-1665: $3.29
1665-2000: $3.29
MAX3815CCM-D
MAX3815CCM-D

Maxim Integrated Products

Equalizers TMDS Digi Video EQ for HDMI/DVI Cables

Data Sheet

Negotiable
MAX3815CCM-TD
MAX3815CCM-TD

Maxim Integrated Products

Equalizers TMDS Digi Video EQ for HDMI/DVI Cables

Data Sheet

Negotiable
MAX3815CCM+TDG05
MAX3815CCM+TDG05

Maxim Integrated Products

Equalizers TMDS Digi Video EQ for HDMI/DVI Cables

Data Sheet

0-1664: $3.28
1664-2000: $3.28
MAX3815CCM+D
MAX3815CCM+D

Maxim Integrated Products

Equalizers TMDS Digi Video EQ for HDMI/DVI Cables

Data Sheet

0-1: $8.02
1-25: $5.39
25-50: $3.91
50-100: $3.86
