Product Summary

The FT232BL is the 5 x5 mm lead free QFN32 package version of the 2nd generation of FTDI’s popular USB UART I.C. This device not only adds extra functionality to its FT8U232AM predecessor and reduces external component count, but also maintains a high degree of pin compatibility with the original, making it easy to upgrade or cost reduce existing designs as well as increasing the potential for using the device in new application areas.

Parametrics

Absolute maximum ratings: (1)Storage Temperature: –65℃ to + 150℃; (2)Floor Life (Out of Bag) at Factory Ambient (30oC/60% Relative Humidity): 192 Hours (Level 3 Compliant); (3)Ambient Temperature (Power Applied): 0℃ to + 70℃; (4)M.T.B.F. (at 35℃): 247484 Hours ≈ 28 Years; (5)VCC Supply Voltage: -0.5 to +6.00 V; (6)D.C. Input Voltage - USBDP and USBDM: -0.5 to +3.8 V; (7)D.C. Input Voltage - High Impedance Bidirectionals: -0.5 to +(Vcc +0.5) V; (8)D.C. Input Voltage - All other Inputs: -0.5 to +(Vcc +0.5) V.

Features

Features: (1)384 Byte Receive Buffer / 128 Byte Transmit Buffer for high data throughput; (2)Adjustable RX buffer timeout; (3)Fully Assisted Hardware or X-On / X-Off Handshaking; (4)In-built support for event characters and line break condition; (5)Auto Transmit Buffer control for RS485.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

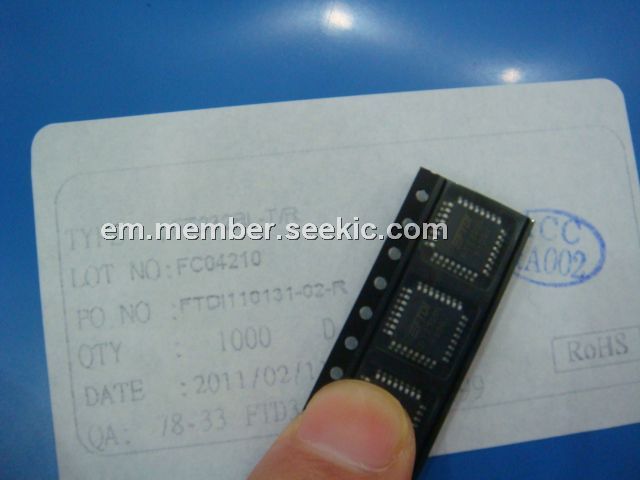

FT232BL
FT232BL

Other


Data Sheet

Negotiable
FT232BL-REEL
FT232BL-REEL

FTDI

USB Interface IC USB to Serial UART IC LQFP-32

Data Sheet

0-1: $3.45
1-10: $2.97
10-50: $2.76
50-100: $2.55
