Product Summary

The FF150R12RT4 is an IGBT module. Typical applications of the FF150R12RT4 are high frequency switching application, motor drives, UPS systems.

Parametrics

FF150R12RT4 absolute maximum ratings: (1)collector-emitter voltage Tvj = 25CC Vces: 1200V; (2)DC-collector current Tc = 100℃, TVj = 175℃ lc: 150A; (3)repetitive peak collector current tp = 1 ms ICRM: 300A; (4)total power dissipation Tc = 25℃, T = 175℃ Plot: 790W; (5)gate-emitter peak voltage Vges: +/-20V.

Features

FF150R12RT4 features: (1)Extended Operation Temperature Tv, op; (2)Low Switching Losses; (3)LOW VcEsai; (4)TVj 0P = 150℃; (5)VcEsai with positive Temperature Coefficient.

Diagrams

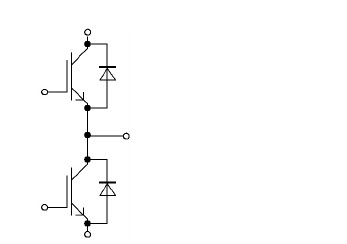

FF150R12RT4 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF150R12RT4
FF150R12RT4
Infineon Technologies
IGBT Modules IGBT 1200V 150A
