Product Summary
The ADS1110A0IDBVR is a precision, continuously self-calibrating Analog-to-Digital (A/D) converter with differential inputs and up to 16 bits of resolution in a small SOT23-6 package. The onboard 2.048V reference provides an input range of ±2.048V differentially. The ADS1110A0IDBVR uses an I2C-compatible serial interface and operates from a single power supply ranging from 2.7V to 5.5V.
Parametrics
ADS1110A0IDBVR absolute maximum ratings: (1)VDD to GND: -0.3V to +6V; (2)Input Current: 100mA, Momentary; (3)Input Current: 10mA, Continuous; (4)Voltage to GND, VIN+, VIN-: -0.3V to VDD + 0.3V; (5)Voltage to GND, SDA, SCL: -0.5V to 6V; (6)Maximum Junction Temperature +150℃; (7)Operating Temperature Range: -40℃ to +125℃; (8)Storage Temperature Range: -60℃ to +150℃; (9)Lead Temperature (soldering, 10s): +300℃.
Features
ADS1110A0IDBVR features: (1)complete data acquisition system in a tiny SOT23-6 PACKAGE; (2)ONBOARD REFERENCE: Accuracy: 2.048V ±0.05%, Drift: 5ppm/℃; (3)onboard pga; (4)onboard oscillator; (5)16-bits no missing codes; (6)INL: 0.01% of FSR max; (7)continuous self-calibration; (8)single-cycle conversion; (9)programmable data rate: 15SPS TO 240SPS; (10)I2C interface—eight available addresses; (11)power supply: 2.7V to 5.5V; (12)low current consumption: 240μA.

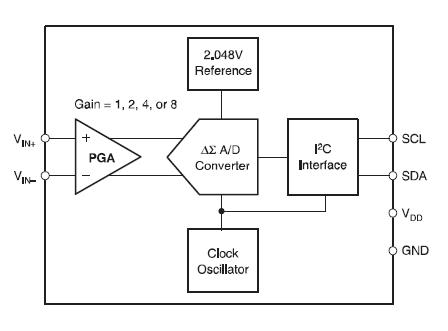

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS1110A0IDBVR |
Texas Instruments |
ADC (A/D Converters) 16-Bit 15SPS D-S |
Data Sheet |
|
|
||||||||
|
ADS1110A0IDBVRG4 |
Texas Instruments |
ADC (A/D Converters) 16-Bit 15SPS D-S |
Data Sheet |
|
|
||||||||
