Product Summary

The ADIS16405BMLZ is a triaxial inertial sensor with magnetometer. The ADIS16405BMLZ is complete inertial systems that include a triaxal gyroscope, a triaxial accelerometer, and a triaxial magnetometer. The ADIS16405BMLZ combines industry-leading iMEMS technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, alignment, and linear acceleration (gyroscope bias). As a result, each sensor has its own dynamic compensation for correction formulas that provide accurate sensor measurements over a temperature range of −40℃ to +85℃. The magnetometers employ a self-correction function to provide accurate bias performance over temperature, as well.

Parametrics

ADIS16405BMLZ absolute maximum ratings: (1)VCC to GND: -0.3 V to +6.0 V; (2)Digital Input Voltage to GND: -0.3 V to +5.3 V; (3)Digital Output Voltage to GND: -0.3 V to VCC + 0.3 V; (4)Analog Input to GND: -0.3 V to +3.6 V; (5)Operating Temperature Range: -40℃ to +105℃; (6)Storage Temperature Range: -65℃ to +125℃.


Features

ADIS16405BMLZ features: (1)Triaxial, digital gyroscope with digital range scaling; (2)±75°/sec, ±150°/sec, ±300°/sec settings; (3)Tight orthogonal alighment; (4)Triaxial, digital accelerometer, ±18 g; (5)Triaxial, digital magnetometer, ±2.5 gauss; (6)Automatic and manual bias correction controls; (7)Bartlett-window FIR length, number of taps; (8)Digital I/O: data-ready, alarm indicator, general-purpose; (9)Alarms for condition monitoring; (10)Sleep mode for power management; (11)DAC output voltage; (12)Enable external sample clock input up to 1.2 kHz; (13)Single-command self-test; (14)Single-supply operation: 4.75 V to 5.25 V; (15)2000 g shock survivability; (16)Operating temperature range: −40℃ to +105℃.

Diagrams

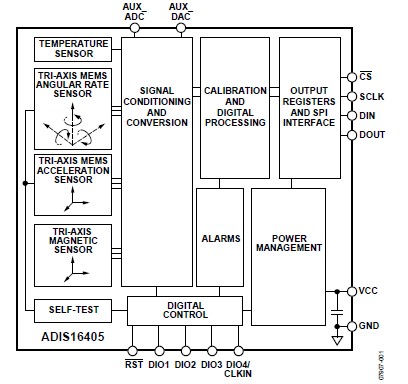

ADIS16405BMLZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADIS16405BMLZ
ADIS16405BMLZ


MODULE GYRO/ACCEL/MAG 24ML

Data Sheet

0-1: $395.90
