Product Summary

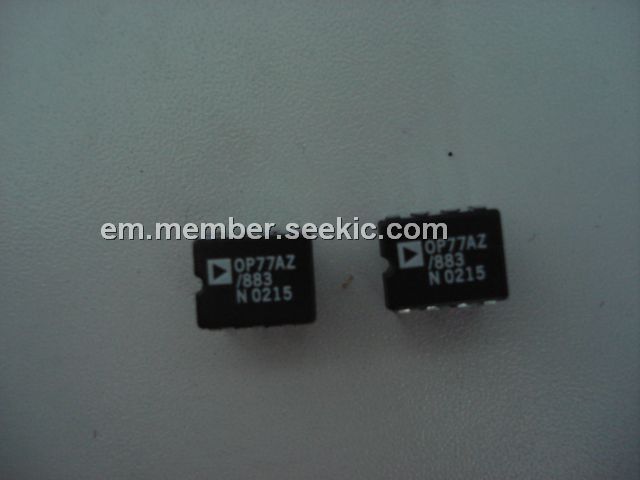

The op77az/883 significantly advances the state-of-the-art in precision op amps. The OP-77’s outstanding fgain of 10,000,000 or more is maintained over the full ±10V outpput range.

Parametrics

Absolute maximum ratings: (1)supply voltage: ±22V; (2)differential input voltage: ±30V; (3)input voltage: ±22V; (4)output short-circuit duration: indefinite; (5)storage temperature range: J, Z and RC packages: -65 to 150 ℃, P package: -65 to 125 ℃; (6)operating temperature range: OP-77A, OP-77B: -55 to 125 ℃.

Features

Features: (1)outstanding gain linearity; (2)ultra high gain: 5000V/mV min; (3)low VOS over temperature: 60μV max; (4)excellent TCVOS: 0.3μV/℃ max; (5)high PSRR: 3μV/V max; (6)low power consumption: 60mW max; (7)fits OP-07, 725, 108A/308A, 741 sockets; (8)available in die form.

Diagrams

OP77
OP77
