Product Summary

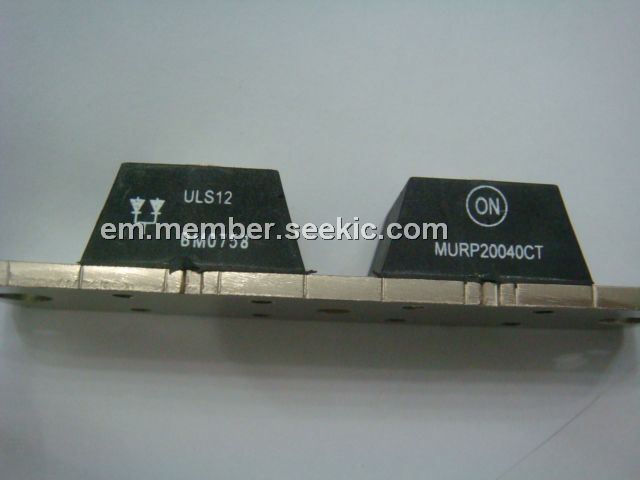

The MURP20040CT is a POWERTAP II ultrafast switchmode power rectifier.
Parametrics
Absolute maximum ratings: (1)Average Rectified Forward Current, IF(AV): 200A @ TL = 150℃ . Per Device; 100A @ TL = 125℃ . Per Leg; (2)Peak Repetitive Surge Current Per Leg (Surge applied at rated load conditions halfwave, single phase, 60 Hz), IFRM: 200 A; (3)Nonrepetitive Peak Surge Current Per Leg (Surge applied at rated load conditions halfwave, single phase, 60 Hz), IFSM: 800 A; (4)Operating Junction Temperature, TJ: -55 to +175℃; (5)Storage Temperature, Tstg: -55 to +150℃.
Features
Features: (1)Dual Diode Construction; (2)Low Leakage Current; (3)Low Forward Voltage; (4)175℃ Operating Junction Temperature; (5)Labor Saving POWERTAP Package; (6)Pb-Free Packages are Available.

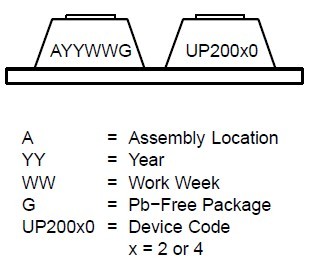

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MURP20040CT |
ON Semiconductor |
Rectifiers 400V 200A Ultrafast |
Data Sheet |
Negotiable |
|
||||
|
MURP20040CTG |
ON Semiconductor |
Rectifiers 400V 200A Ultrafast |
Data Sheet |
Negotiable |
|
||||
