Product Summary

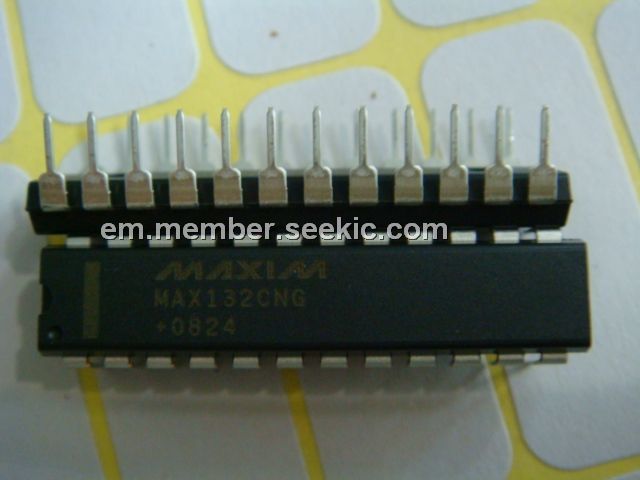

The MAX132CNG is a CMOS, 18-bit plus sign, serial-output, analog-to-digital converter (ADC). Multi-slope integration provides high-resolution conversions in less time than standard integrating ADCs, allowing operation up to 100 conversions per second. Low conversion noise provides guaranteed operation with ±512mV full-scale input range (2µV/LSB). A simple 4-wire serial interface connects easily to all common microprocessors, and twos-complement output coding simplifies bipolar measurements. Typical supply current is only 60µA and is reduced to 1µA in sleep mode. Four serially programmed digital outputs can be used to control an external multiplexer or programmable-gain amplifier. The MAX132CNG comes in 24-pin narrow DIP and wide SO packages, and is available in commercial and extended temperature grades.
Parametrics
Absolute maximum ratings: (1)Supply Voltage V+ to DGND: -0.3V < V+ < +6.0V; (2)V- to DGND: +0.3V < V- < -9.0V; (3)V+ to V-: +15V; (4)Analog Input Voltage (any input): V+ to VDigital; (5)Input Voltage: (DGND - 0.3V) to (V+ + 0.3V); (6)Continuous Power Dissipation Narrow Plastic DIP (derate 8.70mW/℃ above +70℃): 478mW; (7)Wide SO (derate 11.76mW/℃ above +70℃): 647mW; (8)Narrow CERDIP (derate 12.50mW/℃ above +70℃): 688mW; (9)Operating Temperature Ranges: 0℃ to +70℃; (10)Storage Temperature Range: -65℃ to +160℃; (11)Lead Temperature (soldering, 10sec): +300℃.
Features
Features: (1)Low Supply Current: 60μA (Normal Operation), 1μA (Sleep-Mode Operation); (2)±0.006% FSR Accuracy at 16 Conv/sec; (3)Low Noise: 15μVRMS; (4)Serial I/O Interface with Programmed Output for Mux and PGA; (5)Performs up to 100 Conv/sec; (6)±2pA Input Current; (7)50Hz/60Hz Rejection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX132CNG |
Maxim Integrated Products |
ADC (A/D Converters) Integrated Circuits (ICs) |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX132CNG+ |
Maxim Integrated Products |
ADC (A/D Converters) 18-Bit .1ksps .545V Precision ADC |
Data Sheet |
|
|
||||||||||||
