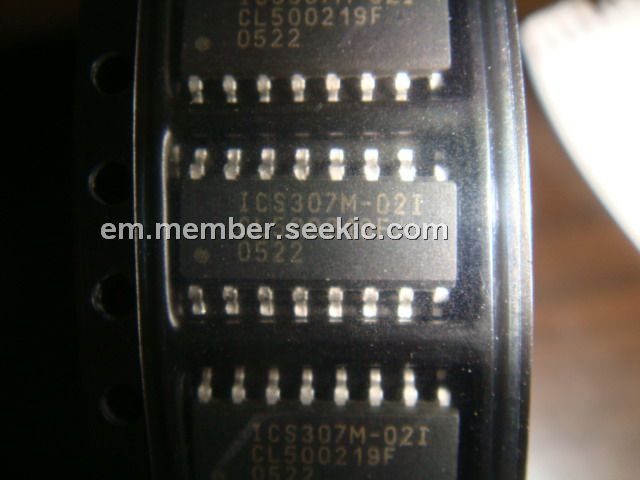

Product Summary

The ICS307m-02I is a versatile serially programmable clock source which takes up very little board space. The ICS307m-02I can generate any frequency from 6 to 200 MHz, and has a second configurable output. The outputs can be reprogrammed on the fly, and will lock to a new frequency in 10 ms or less. Smooth transitions (in which the clock duty cycle remains roughly 50%) are guaranteed if the output divider is not changed. The ICS307m-02I includes a PDTS pin which tri-states the output clocks and powers down the entire chip. The ICS307m-02I features a default clock output at start-up and is recommended for all new designs.

Parametrics

ICS307m-02I absolute maximum ratings: (1)Supply Voltage, VDD Referenced to GND: 7 V; (2)Inputs Referenced to GND: -0.5 to VDD+0.5 V; (3)Clock Output Referenced to GND: -0.5 to VDD+0.5 V; (4)Ambient Operating Temperature: 0 to 70℃; (5)Ambient Operating Temperature, Industrial I version: -40 to 85℃; (6)Soldering Temperature Max of 10 seconds: 260℃; (7)Storage temperature: -65 to 150℃.

Features

ICS307m-02I features: (1)Packaged as 16 pin narrow SOIC; (2)Highly accurate frequency generation; (3)Serially programmable: user determines the output frequency via a 3 wire interface; (4)Eliminates need for custom quartz; (5)Input crystal frequency of 5 - 27 MHz; (6)Output clock frequencies up to 200 MHz; (7)Power Down Tri-State mode; (8)Very low jitter; (9)Operating voltages of 3.0 to 5.5 V; (10)25 mA drive capability at TTL levels; (11)Industrial temperature available.

Diagrams

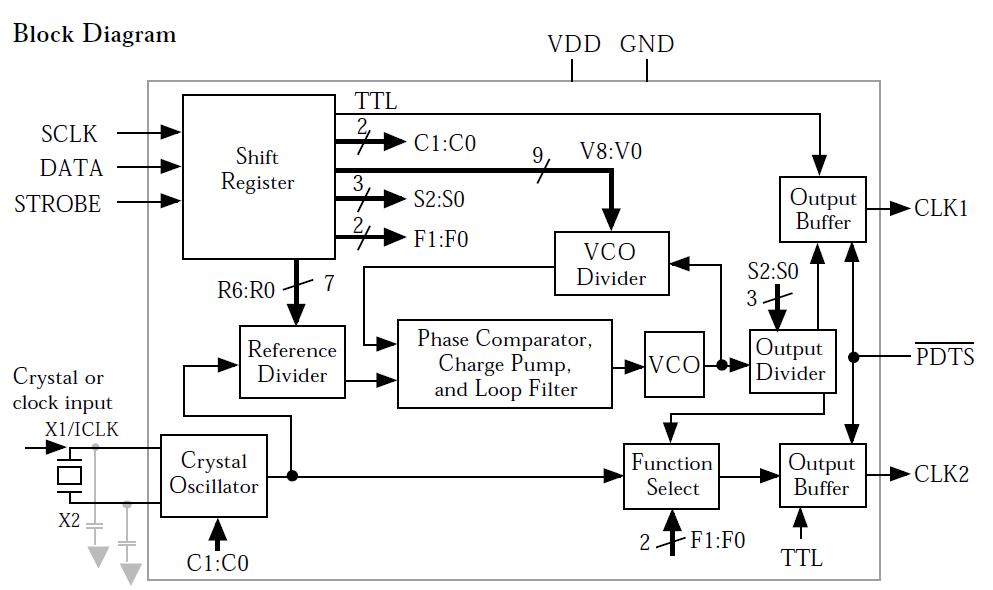

ICS307m-02I block diagram
