Product Summary

The FT232RQ is the latest device to be added to FTDI’s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID™ security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available.

Parametrics

Absolute maximum ratings: (1)Storage Temperature: -65℃ to + 150℃; (2)Floor Life (Out of Bag) at Factory Ambient (30℃/60% Relative Humidity): 168 Hours (Level 3 Compliant); (3)Ambient Temperature (Power Applied): -40℃ to + 85℃; (4)VCC Supply Voltage: -0.5V to +6.00V; (5)DC Input Voltage -USBDP and USBDM: -0.5V to +3.8V; (6)DC Input Voltage - High Impedance Bidirectionals: -0.5V to (VCC + 0.5)V.

Features

Features: (1)Single chip USB to asynchronous serial data transfer interface; (2)Entire USB protocol handled on the chip - No USB-specific firmware programming required; (3)UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity; (4)Fully assisted hardware or X-On / X-Off software handshaking.

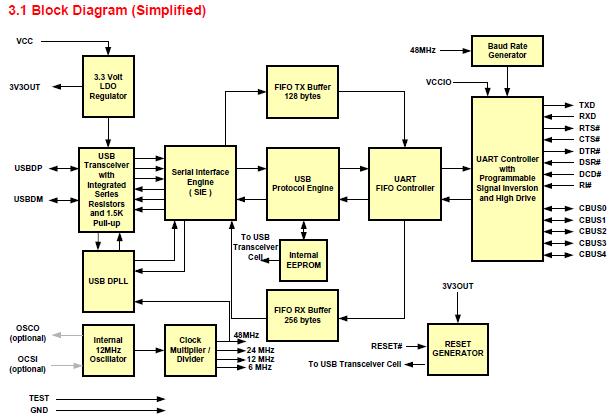

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

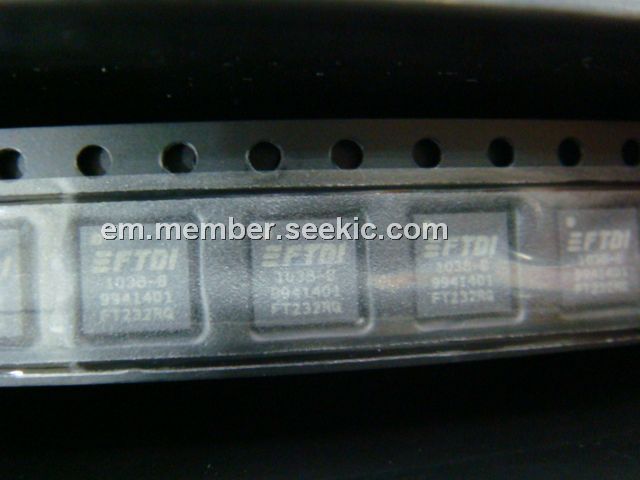

FT232RQ-REEL
FT232RQ-REEL
FTDI
USB Interface IC USB to Serial UART Enhanced IC QFN-32
Data Sheet
0-1: $2.70
1-10: $2.43
10-50: $2.31
50-100: $2.19
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FT230XQ-R
FT230XQ-R
FTDI
USB Interface IC USB to Basic Serial UART IC QFN-16
Data Sheet
0-1: $1.22
1-50: $1.18
50-100: $1.14
100-1000: $0.84
1000-5000: $0.81
FT230XQ-T
FT230XQ-T
FTDI
USB Interface IC USB to Basic Serial UART IC QFN-16
Data Sheet
0-620: $1.14
620-1000: $0.84
1000-5000: $0.81
FT230XS-R
FT230XS-R
FTDI
USB Interface IC USB to Basic Serial UART IC SSOP-16
Data Sheet
0-1: $1.22
1-50: $1.18
50-100: $1.14
100-1000: $0.84
1000-3000: $0.84
FT230XS-U
FT230XS-U
FTDI
USB Interface IC USB to Basic Serial UART IC SSOP-16
Data Sheet
0-630: $1.14
630-1000: $0.84
1000-5000: $0.81
FT231XQ-R
FT231XQ-R
FTDI
USB Interface IC USB to Full Serial UART IC QFN-20
Data Sheet
0-1: $1.27
1-50: $1.23
50-100: $1.19
100-1000: $0.87
1000-5000: $0.84
FT231XQ-T
FT231XQ-T
FTDI
USB Interface IC USB to Full Serial UART IC QFN-20
Data Sheet
0-620: $1.19
620-1000: $0.87
1000-5000: $0.84
