Product Summary
The FT232RL is one member of the FT232R series.The FT232R is the latest device to be added to FTDI’s range of USB UART interface Integrated Circuit Devices.The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID(TM) security dongle feature.In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
Parametrics
Absolute maximum ratings: (1)Vcc supply voltage: -0.5 to 6.00V; (2)D.C. output current-outputs: 24 mA; (3)ambient temperature: -40 to 85℃; (4)storage temperature: -65 to 150℃; (5)DC output current-low impedance bidirectionals: 24 mA; (6)power dissipation: 500mW.
Features
Features: (1)single chip USB to asynchronous serial data transfer interface; (2)auto transmit buffer control for RS485 applications; (3)transmit and receive LED drive signals; (4)new 48MHz, 24MHz,12MHz, and 6MHz clock output signal options for driving external MCU or FPGA; (5)FIFO receive and transmit buffers for high data throughput; (6)adjustable receive buffer timeout.

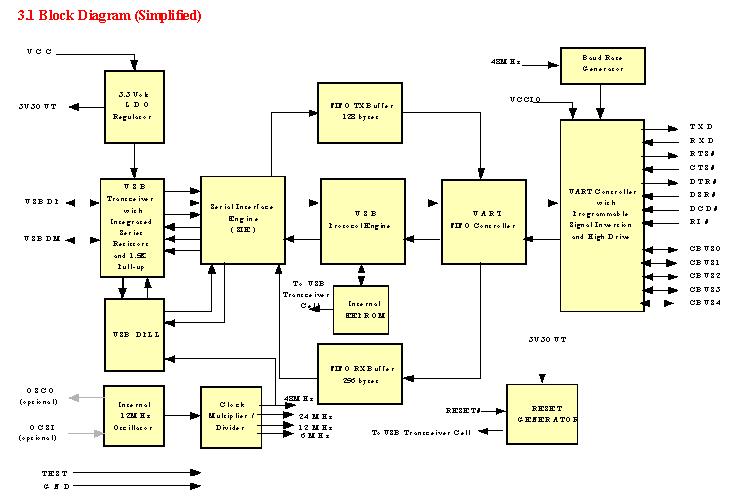

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FT232RL |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
FT232RL-REEL |
FTDI |
USB Interface IC USB to Serial UART Enhanced IC SSOP-28 |
Data Sheet |
|
|
