Product Summary

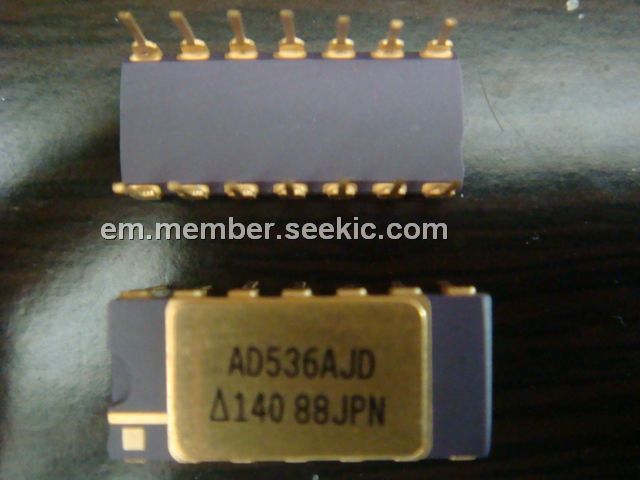

The AD536AJD is a complete monolithic integrated circuit which performs true rms-to-dc conversion. It offers performance which is comparable or superior to that of hybrid or modular units costing much more.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: Dual Supply: ±18 V, Single Supply: +36 V; (2)Internal Power Dissipation2: 500 mW; (3)Maximum Input Voltage: ±25 V Peak; (4)Buffer Maximum Input Voltage: ±VS; (5)Maximum Input Voltage: ±25 V Peak; (6)Storage Temperature Range: –55℃ to +150℃; (7)Operating Temperature Range: 0℃ to +70℃; (8)Lead Temperature Range (Soldering 60 sec): +300℃; (9)ESD Rating: 1000 V.
Features
Features: (1)True RMS-to-DC Conversion; (2)Laser-Trimmed to High Accuracy; (3)Wide Response Capability: Computes RMS of AC and DC Signals, 450 kHz Bandwidth: V rms > 100 mV, 2 MHz Bandwidth: V rms > 1 V, Signal Crest Factor of 7 for 1% Error; (4)dB Output with 60 dB Range; (5)Low Power: 1.2 mA Quiescent Current; (6)Single or Dual Supply Operation; (7)Monolithic Integrated Circuit; (8)–55℃ to +125℃ Operation.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD536AJD |
|
IC TRUE RMS/DC CONV 14-CDIP |
Data Sheet |
|
|
||||||||||||||||
|
AD536AJDZ |
|
IC TRUE RMS/DC CONV 14-CDIP |
Data Sheet |
|
|
||||||||||||||||
